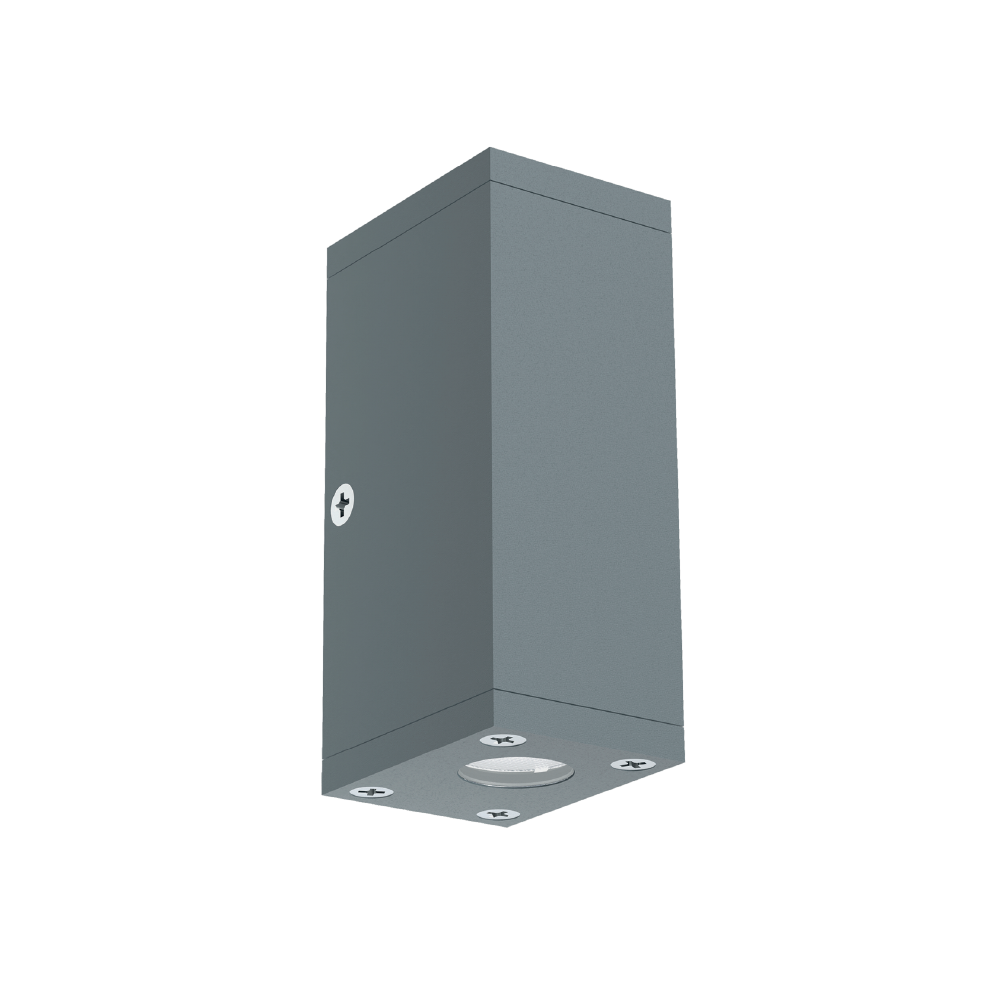

BOXY WM 39 UD

  • Durable and elegant, CNC Lighting’s Wall Mount Fixtures are designed to seamlessly integrate into outdoor landscapes, delivering reliable and stunning illumination in any environment.

Material

Solid Aluminium Body.
Extra Safety Impact Resistant, Toughened Glass.
“Coro Safe” High Grade Anodizing.
“Duracoat” Double Layer Body Coating To WithStand Corrosion. “Weatherprotect” Outdoor Rated Powder Coating.

Finish

Grey, Dark Black,Matt White, Corten, Dark Leaf Green

Installation

High-Efficiency Optical System
Extra Clear Glass To Increase Efficiency Of The Fixture.
High-Grade Silicon Gasket- Heat & Cold Resistant.
High-Grade Brass Nickel Plated German Gland.

Cable

2x 0.75sqmm 2 Core Cable High-Grade Neoprene Silicon-Based Italian Cable To Withstand Any Weather Condition



Wattage
5W (2.5W + 2.5W)

Lumen Output
600lm(300lm + 300lm)

CRI
80

Optics
12°/ 24°/ 40°/ 60°

CCT
2700K/ 3000K/ 4000K

Finish
Grey / Dark Black / Matt White / Corten / Dark Leaf Green

Power Supply
230VAC

Accessories
 Hexcell Louvre

Specification Sheet

  Installation Sheet
