HELIOS 55

  • General Lighting For Various Applications.
  • Die-Cast Aluminum Housing.
  • LED: Cree/Bridgelux.
  • Available In 3 Different Beam Angles -15º, 24º, and  38º.
  • Different Shinland Reflectors To Choose from.
  • Dimmable.
  • Easy Installation.

Product Code :- HELIOS - RDL-5570-ART

Wattage
(Lumen)

7- 7W (500lm)

CRI

80 – 80 CRI
90 – 90 CRI
(On Request)

Optics

M – 15º
W – 24º
WF – 38º

CCT

27 – 2700K
30 – 3000K
40 – 4000K

Finish

BK – Black
WH – White

Supply

CC –
Constant
Current Driver
(36V, 500mA)

DOWNLOAD SPEC SHEET

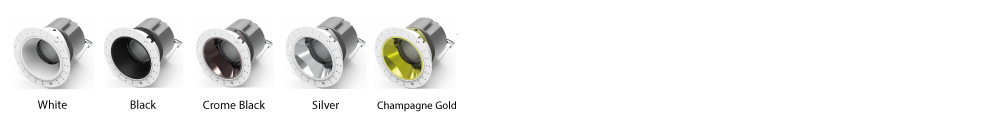

REFLECTOR’S:

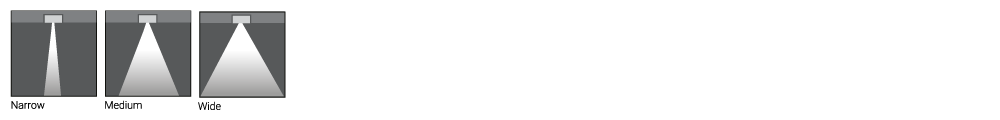

OPTIC’S:
